A slow network in a conference room, an unreliable door reader, or a desk with too few connections often starts with the same issue: wiring was treated as an afterthought. A well-planned office wiring guide puts the infrastructure in place before walls close, furniture arrives, and daily operations make changes expensive. The goal is not simply to run cable. It is to create an organized system that supports people, devices, security, and future growth without turning the office into a patchwork of extension cords and temporary fixes.
Office Wiring Guide: Plan Around How the Office Works
Start with the way your team will use the space, not with a list of cable types. A small accounting firm with private offices has different requirements than a restaurant headquarters, warehouse office, medical practice, or flexible coworking suite. Map employee workstations, reception, meeting rooms, printers, network closets, entry points, cameras, displays, and any equipment that needs a wired connection.
This planning phase should also account for growth. If a 20-person office may become a 35-person office in two years, plan cable pathways and network capacity accordingly. Adding a few extra runs during construction is usually far less disruptive than opening finished walls later.
A practical design identifies where each system will live and how it will connect. That includes the internet service entry, the main network rack, secondary closets in larger spaces, WiFi access points, surveillance cameras, access control hardware, and audiovisual equipment. For offices with hybrid meetings, conference room connectivity deserves special attention. A polished room can still feel unusable if its display, camera, microphones, and network connection were not designed as one system.
Build a Structured Cabling Backbone

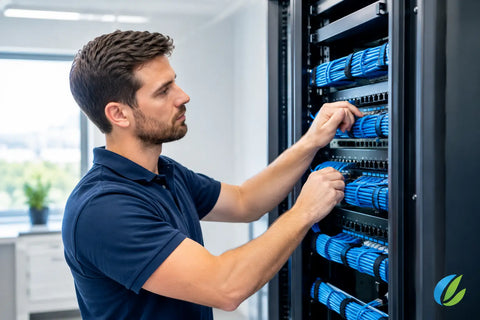

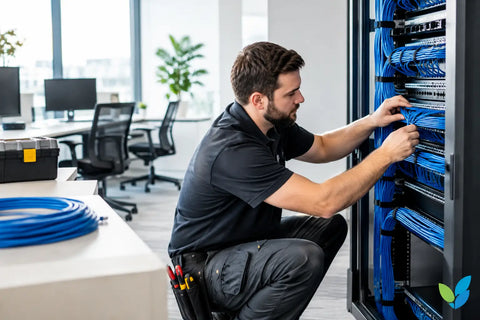

Structured cabling is the physical foundation of an office network. Instead of running random cables directly from one device to another, every permanent cable run should return to a central, accessible location. This is commonly a network rack or telecom room containing the gateway, switches, patch panels, power protection, and cable management.
For most office workstations and networked devices, Cat6 cabling is a strong baseline. It supports gigabit networking and is suitable for many standard commercial installations. Cat6A can make more sense when you want 10-gigabit capability over longer runs, expect high data demand, or want additional room for future upgrades. It costs more and requires more careful installation, so it is not automatically the right answer for every desk.
Fiber optic cable may be appropriate between floors, separate suites, distant network closets, or areas affected by electrical interference. Fiber provides high bandwidth over long distances, but it requires compatible equipment and a design that justifies the added expense. The right approach depends on building size, construction, internet speed, and the applications your team relies on.
A clean office cabling plan should include dedicated runs for fixed equipment, not just employee desks. These often include:
- WiFi access points placed for coverage and capacity
- IP cameras and video intercoms
- Door access readers, controllers, and request-to-exit devices
- Conference room displays, conferencing equipment, and control systems
- Printers, point-of-sale equipment, and other business-critical devices
Design Each Work Area for the Real Device Count
A single wall jack at every desk may sound efficient, but it often creates immediate workarounds. Consider the wired devices each workstation may need: a desktop computer, dock, desk phone, printer, or a nearby shared device. In executive offices and reception areas, add extra capacity where polished connectivity matters most.
Two data drops per workstation area are common, though the right number depends on the furniture plan and whether your staff primarily uses laptops on WiFi. Wired connections remain valuable for desktop systems, high-quality video calls, large file transfers, and any device that needs predictable performance.
Cable placement should match furniture placement. A cable outlet hidden behind built-in cabinetry or positioned on the wrong side of a conference table is technically installed but functionally useless. Review floor plans, elevations, and furniture layouts together before installation begins. In open offices, floor boxes and furniture-feed solutions may be necessary, but they need coordination early with flooring, electrical, and millwork teams.
Treat WiFi as Part of the Wiring Plan
WiFi is wireless only at the user end. Every professionally installed access point still needs a wired backhaul, typically a Cat6 or Cat6A cable with PoE. Planning access point locations after construction can lead to poor coverage, visible surface-mounted wiring, or devices installed where they look convenient rather than where they perform best.
Coverage is only one part of WiFi design. Capacity matters in busy offices, training rooms, restaurants, and spaces where guests connect frequently. A single access point may cover a large area on paper but struggle when dozens of devices are active at once. Wall materials, glass partitions, concrete, metal shelving, elevators, and kitchen equipment can all affect performance.
A site-aware design places access points where people actually work and considers separate networks for staff, guests, and business systems. For example, security cameras and access control devices should not share the same unrestricted network as guest devices. Network segmentation helps protect operations while making troubleshooting easier.
Coordinate Low-Voltage Wiring With Electrical Work
Network cabling, security wiring, and AV cabling are low-voltage systems, but they still need thoughtful coordination with electrical infrastructure. Data cables should not be routed too closely or parallel to high-voltage electrical lines for long distances, since electrical interference can affect performance. Local codes and manufacturer requirements guide separation, pathway use, fire stopping, and cable support.
The network rack also needs proper power planning. Provide dedicated electrical circuits where appropriate, surge protection, and battery backup for critical equipment. A UPS can keep the network, phones, cameras, and door access system running through short outages, but runtime depends on the load. It is not a substitute for a generator in facilities that need extended continuity.
Temperature is another consideration. A small, unventilated closet can shorten equipment life and make network issues harder to diagnose. Choose a location with service access, ventilation, adequate wall space or rack space, and a clear path for future cabling.
Install for Serviceability, Not Just Completion
The best cabling work is easy to maintain years later. Every cable should be labeled at both ends with a consistent naming system that matches the floor plan, patch panel, and network documentation. Avoid vague labels such as “Office 1” when a more useful label can identify the room, outlet, and port.
Cables should be supported correctly, routed through approved pathways, and terminated cleanly. Loose cable piles above ceilings or tangled cords in a rack make future service slower and increase the chance of accidental disconnects. Professional cable management also improves airflow around network equipment and presents a more organized environment for property managers and IT teams.
Testing is essential. A cable that appears connected may still have performance problems caused by poor termination, damaged pairs, excessive bend radius, or improper installation practices. Each permanent run should be tested and documented before furniture is moved in and systems go live.
For a complete handoff, ask for documentation that includes the network rack layout, cable labels, test results, equipment list, WiFi access point locations, and basic network diagram. If security, access control, and AV systems are included, their device locations and service information should be part of the same project record.
Get the Design Right Before Construction Closes
Office wiring is one of the few building systems that becomes harder to improve after finishes are complete. The right design balances current needs with realistic expansion, rather than overspending on capacity that will never be used or cutting corners that create operational headaches.
